Description

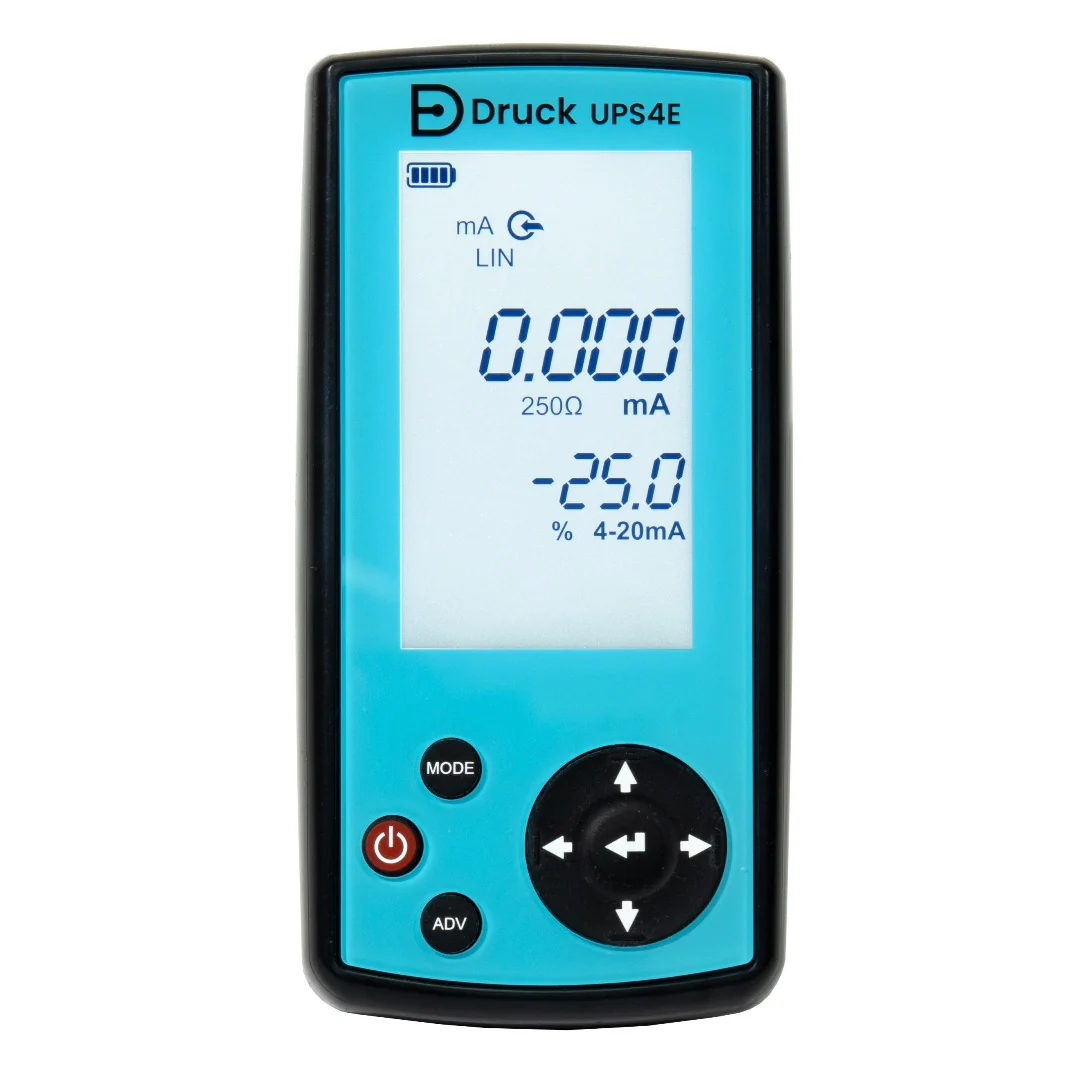

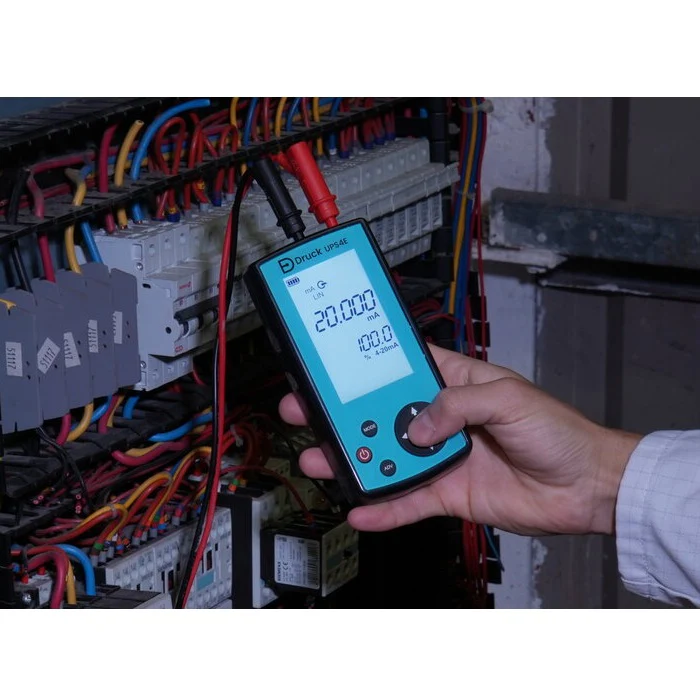

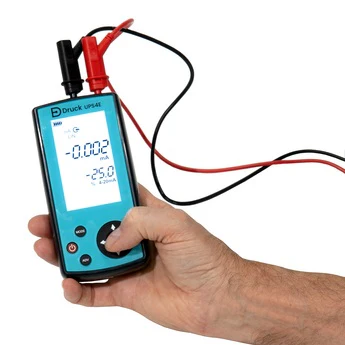

The UPS4E is a rugged and extremely compact loop calibrator, designed to be operated with one hand. It is an essential tool for loop testing/powering process control mA loops and mA devices. Perfect for instrument maintenance with an easy-to-read display and simple-to-use time saving features including step, span and valve check.
The UPS4E utilises the most advanced electrical calibration technology to create a dependable, cost-effective loop calibrator.

Features and benefits

• Measure or source 0 to 24 mA
• Accuracy 0.01% of reading+1 count
• Dual mA and % readout, linear or flow
• Step, span check, valve check, ramp.
• 30 VDC measurement and continuity check
• 100,000 datalog points
• In built 250 ? resistor for supporting HART operation
• 24 V DC loop power with mA measure or source mode
• Auto shutdown to conserve battery life.

The Druck UPS4E is supplied with a quick start & safety guide, set of alkaline batteries, test leads, USB cable, and a calibration certificate.
