Description

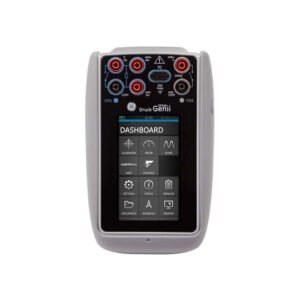

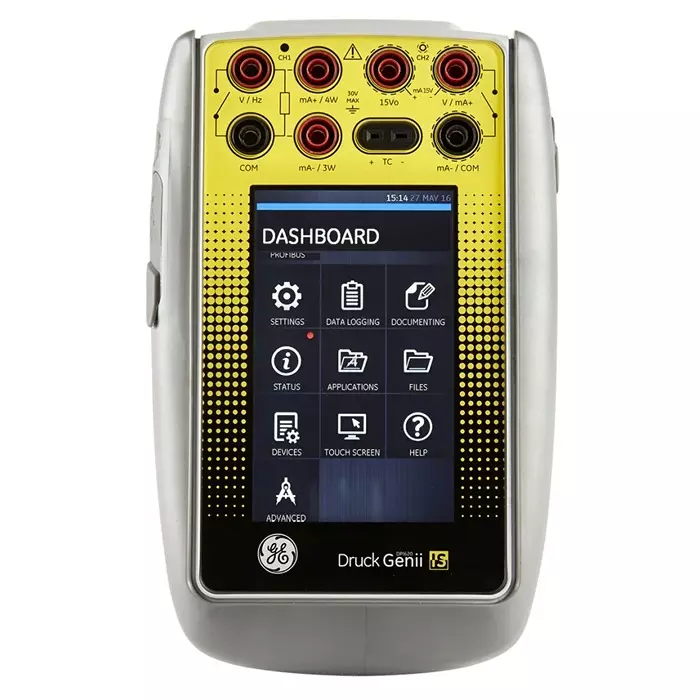

The Druck Genii DPI 620G IS is an intrinsically safe advanced modular multifunction calibrator designed for use in hazardous (Ex-rated) environments. It combines electrical, temperature, and pressure calibration with integrated HART communication, making it a complete portable solution for process calibration, configuration, and maintenance tasks in challenging field conditions.

Key Features:

1. Intrinsically Safe Design: Certified for hazardous area use.
2. Pressure Measurement Range: 25 mbar to 1000 bar with interchangeable Druck pressure modules.
3. Multifunction Capability: Calibrates pressure, electrical signals (mA, mV, V, Ω, frequency), and temperature.
4. Integrated HART Communication: Configure, calibrate, and diagnose HART-enabled smart transmitters.
5. Advanced Modular System: Compatible with Druck’s modular pressure systems (PM620, PM700, etc.) for flexible expansion.
6. Automated Calibration Routines: Streamlines field calibration and ensures accuracy.
7. High Accuracy & Stability: Delivers laboratory-grade performance in a rugged, field-portable device.
8. Touchscreen Interface: Intuitive color display with modern user navigation.
9. Rugged & Portable: Compact, battery-powered design for tough industrial environments.

Standard Accessories (Included):

• Rechargeable lithium polymer battery (P/N IO620-BATTERY)
• Universal mains adapter/charger (P/N IO620-PSU)
• AC measurement probe (P/N IO620-AC, 300 VAC true RMS)
• Test leads
• Calibration certificate
• Quick reference guide
