Description

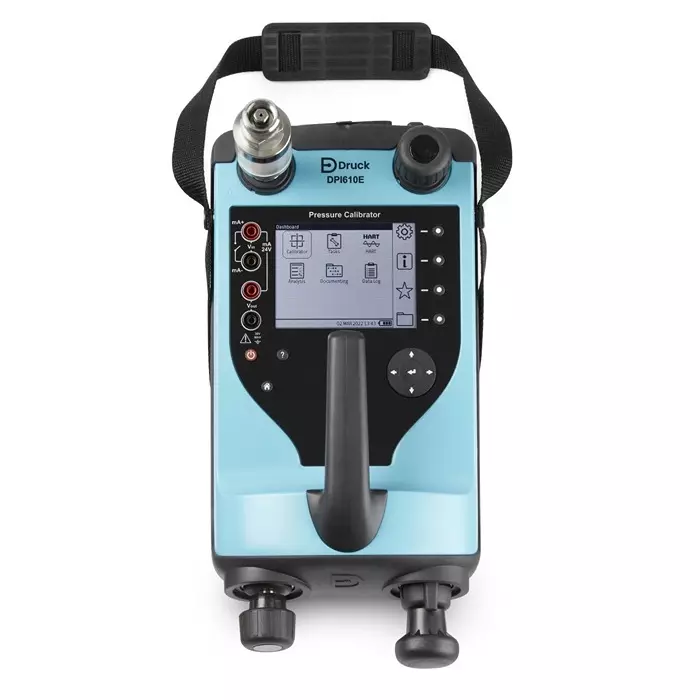

The DPI610E-PC is a handheld pneumatic pressure calibrator designed for accurate field measurements. It combines pressure generation, signal measurement, and loop power with a robust touch-and-button interface, ideal for instrument technicians. The pneumatic version provides vacuum to 35 bar measurement with an integrated barometer for precise pseudo-pressure readings. Basic HART functionality allows communication with HART-enabled transmitters.

Key Features:

1. Pneumatic calibration up to 35 bar
2. Rugged handheld design with backlit display
3. Basic HART support for HART-enabled transmitters
4. Quick-fit pressure adapters to minimize field leaks
5. Data logging and local documentation included
6. Supplied with battery, charger, test leads, G1/8 & 1/8 NPT adaptors, IDT dirt/moisture trap, and calibration certificate

Note: Different range options are available on request.

Pressure Range Options:

• 03G- 350 mbar/5 psi/35 kPa
• 05G- 1 bar/15 psi/100 kPa
• 07G- 2 bar/30 psi/200 kPa
• 08G- 3.5 bar/50 psi/350 kPa
• 10G- 7 bar/100 psi/700 kPa
• 11G- 10 bar/150 psi/1000 kPa
• 13G- 20 bar/300 psi/2 MPa
• 14G- 35 bar/500 psi/3.5 MPa
