Description

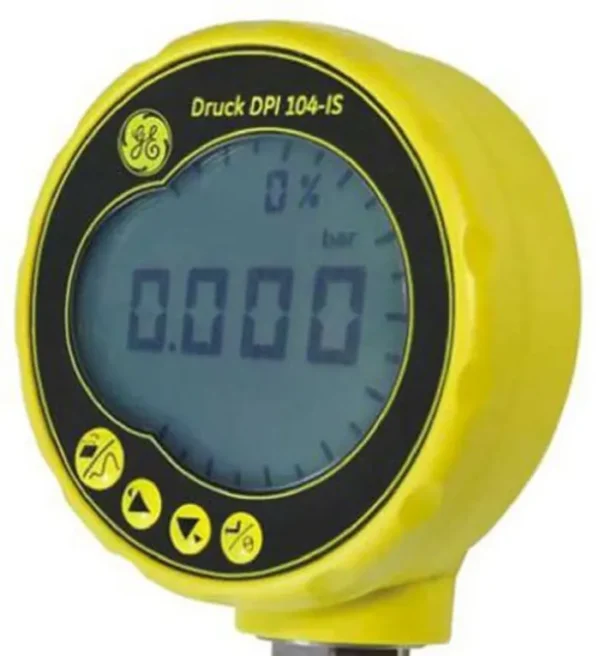

The Druck DPI 104-IS is a microprocessor-controlled digital pressure gauge that combines precision, versatility, and rugged design in a compact, easy-to-use package. Leveraging advanced silicon sensor technology and a thoughtfully engineered interface, the DPI 104 delivers high accuracy and reliability for a wide range of industrial pressure measurement applications.

Available as a stand-alone process indicator or as part of a kit with Druck hand pumps, it offers a cost-effective solution without compromising performance. ATEX, IECEx, and ETL-approved intrinsically safe versions ensure safe operation in hazardous areas.

Key Features

1. High Accuracy: ?0.05% full scale (FS) for precise measurements.
2. Wide Pressure Range: Up to 1400 bar (20,000 psi).
3. Multiple Units: Eleven selectable pressure units for versatile use.
4. Clear Display: Large, five-digit resolution display with % pressure and bar graph for quick reference.
5. Temperature Compensated: Maintains accuracy from -10?C to 50?C (14?F to 122?F).
6. Analog & Digital Interfaces: 0?5V analog output, RS232 serial interface, and IDOS compatibility.
7. Enhanced Functionality: Minimum/maximum, tare, alarm, and pressure switch test features.
8. Rugged Construction: Stainless steel or Inconel pressure cavity suitable for aggressive media.
9. Software Support: Free monitoring and control software included

Ordering Info

• DPI104 IS Range:-1 to 0.7 Bar ( 10Psi) Resolution: 0.01mbar
• DPI104 IS Range:-1 to 2 Bar ( 30Psi) Resolution: 0.1mbar
• DPI104 IS Range:-1 to 7 Bar ( 100Psi) Resolution: 0.1mbar
• DPI104 IS Range:-1 to 20 Bar ( 300Psi) Resolution: 1mbar
• DPI104 IS Range:-1 to 70 Bar ( 1000Psi) Resolution: 1mbar
• DPI104 IS Range:-1 to 200 Bar ( 3000Psi) Resolution: 10mbar
• DPI104 IS Range:-1 to 350 Bar ( 5000Psi) Resolution: 10mbar
• DPI104 IS Range:-1 to 700 Bar ( 10000Psi) Resolution: 10mbar
• DPI104 IS Range:-1 to 1000 Bar ( 15000Psi) Resolution: 100mbar
• DPI104 IS Range:-1 to 1400 Bar ( 20000Psi)
