Description

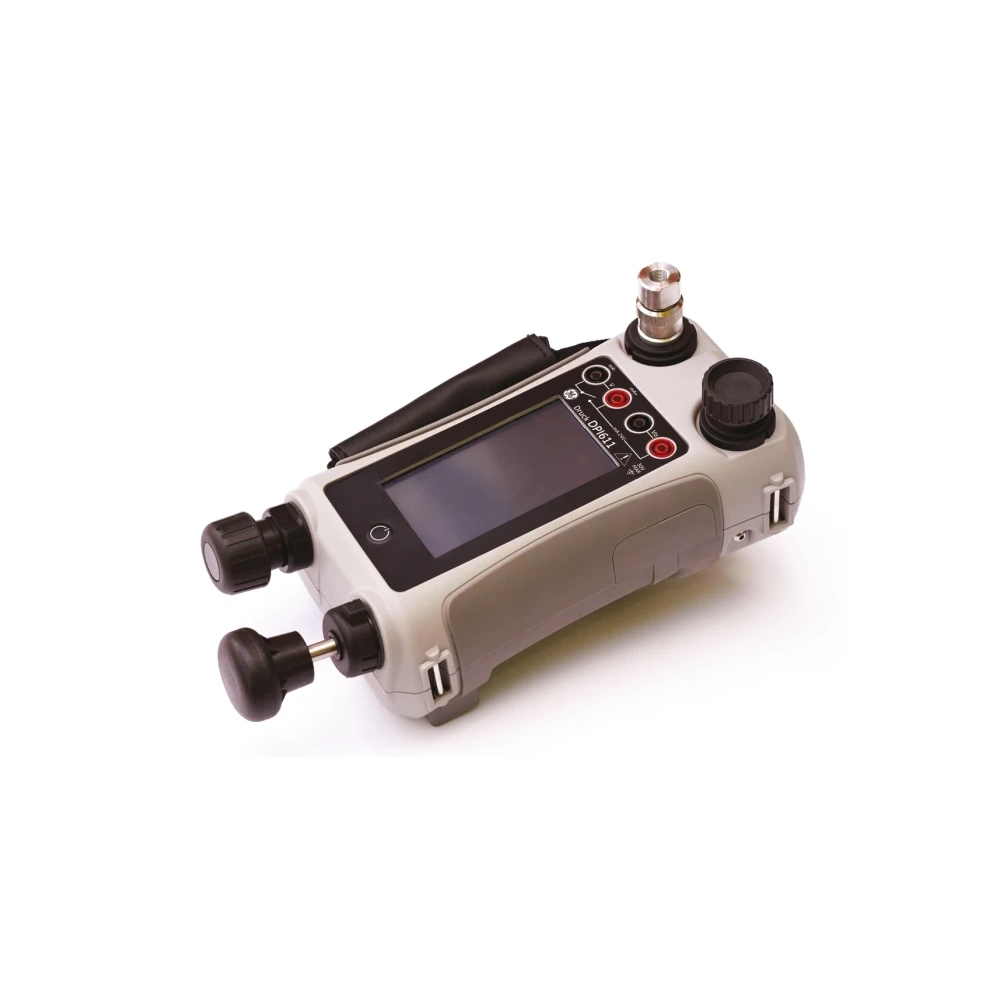

The DPI 611 is an easy-to-use tool for pressure instrument calibration and maintenance, featuring advanced functions for automated procedures, error calculation, and PC integration. DPI611 is a  fully self-contained pressure test and calibration system combines pressure generation, signal measurement and loop power to provide all the convenience of the Druck DPI 610/615 and yet it’s half the size, twice as accurate and easier to use.

Features:

1. 50% smaller and 33% lighter than the DPI 610 series
2. Generates 0 to 20 bar/300 psi in less than 30 seconds
3. Creates 95% vacuum
4. Pressure measurement is twice as accurate
5. Three times better electrical accuracy
6. Simplified touch screen interface with application

DASHBOARD, quick TASK selection and FAVOURITES storage

1. Fast, three touch set-up for any application
2. Calculates PASS/FAIL errors, documents results and

interfaces with calibration software

• Provided with one free 4Sight2 Lite calibration software license

Ordering Info

PART NUMBER

1. DPI611-05G for -1 to 1 bar / -14.5 to 15 psi gauge range
2. DPI611-07G for -1 to 2 bar / -14.5 to 30 psi gauge range
3. DPI611-10G for -1 to 7 bar / -14.5 to 100 psi gauge range
4. DPI611-11G for -1 to 10 bar / -14.5 to 150 psi gauge range
5. DPI611-13G for -1 to 20 bar / -14.5 to 300 psi gauge range
