Description

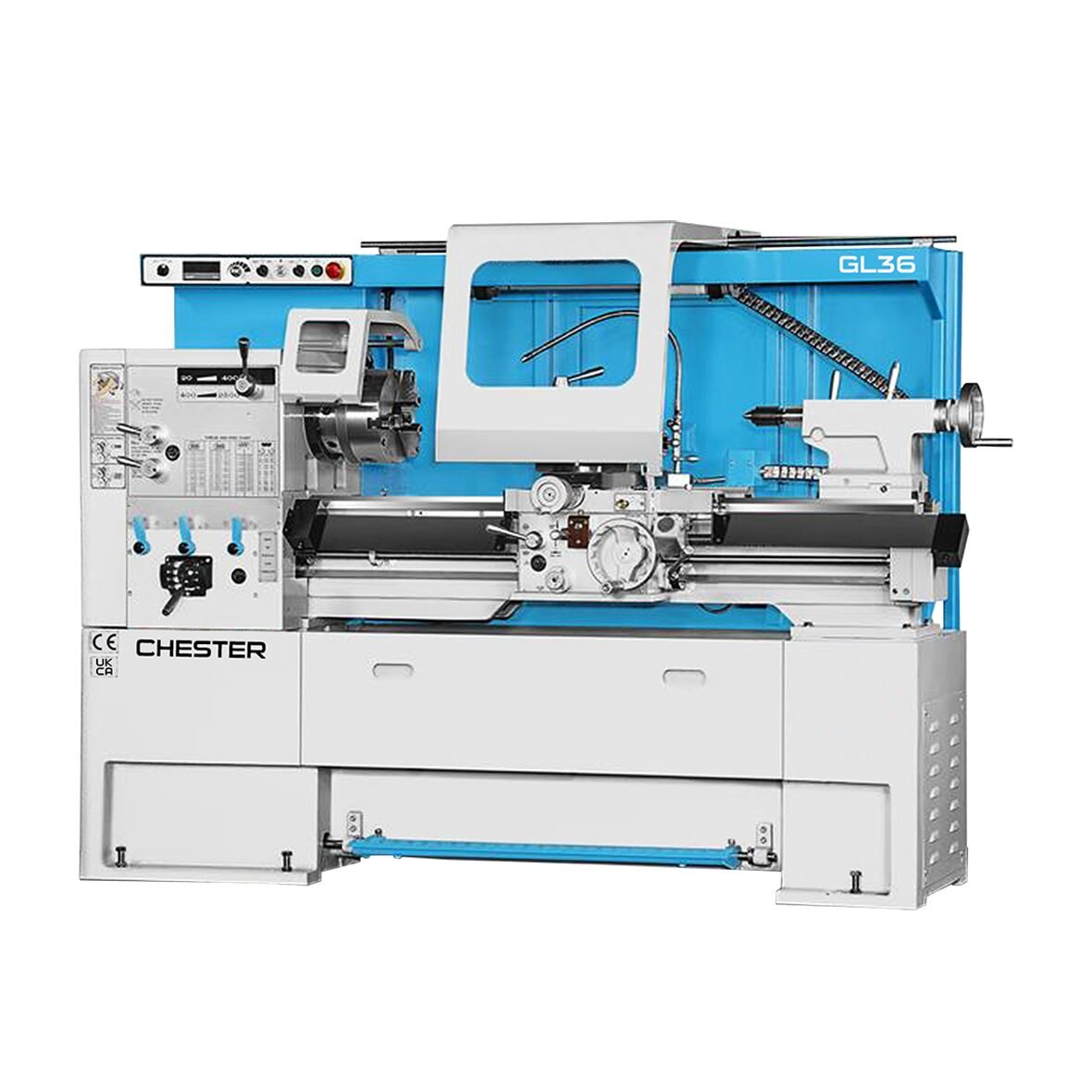

GL36 series Lathes are ideal for workshops.

• Hardened & Ground Bedways

• Foot Brake

• Wide Bed Ways

1. • Built in Coolant pump
2. Manual metalworking lathes for turning and cutting
3. Hardened & Ground Bedways, Foot Brake, Wide Bed Ways, Built in Coolant pump
4. Centre Height: 180mm
5. Swing over Bed: 360mm
6. Distance between Centres: 1000mm
7. Swing over Cross Slide: 210mm
8. Bed Width: 260mm
9. Max. Weight of Work Piece in Chuck: 40kg
10. Max. Weight of Work Piece between centres: 150kg
11. Spindle Nose: D1-6
12. Spindle Bore: 52.5mm
13. Spindle Taper: MT6 x MT4
14. Number of Spindle Speeds: 8 steps
15. Range of Spindle Speeds: 70-1800rpm
16. Tool Section: 20x20mm
